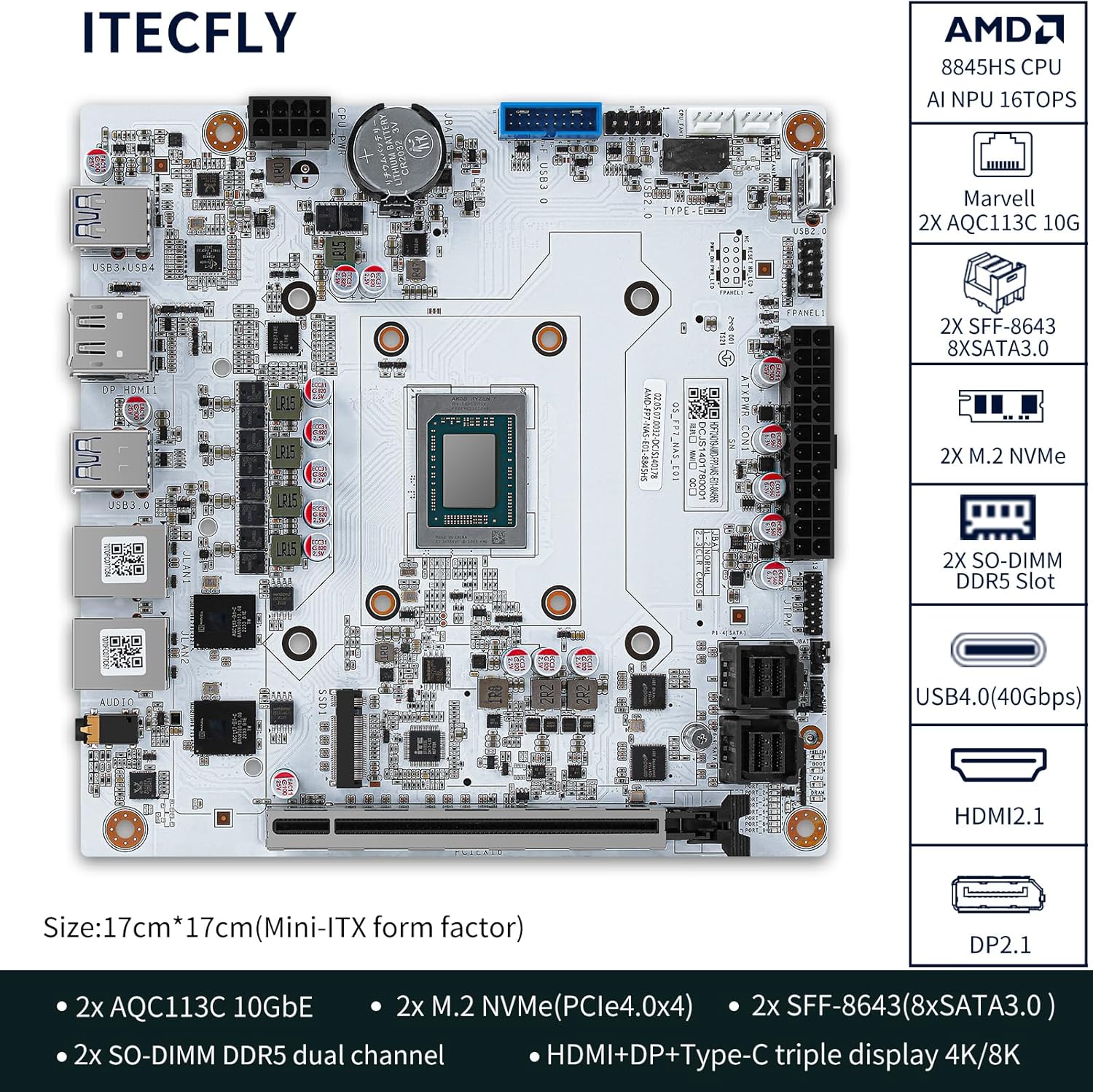

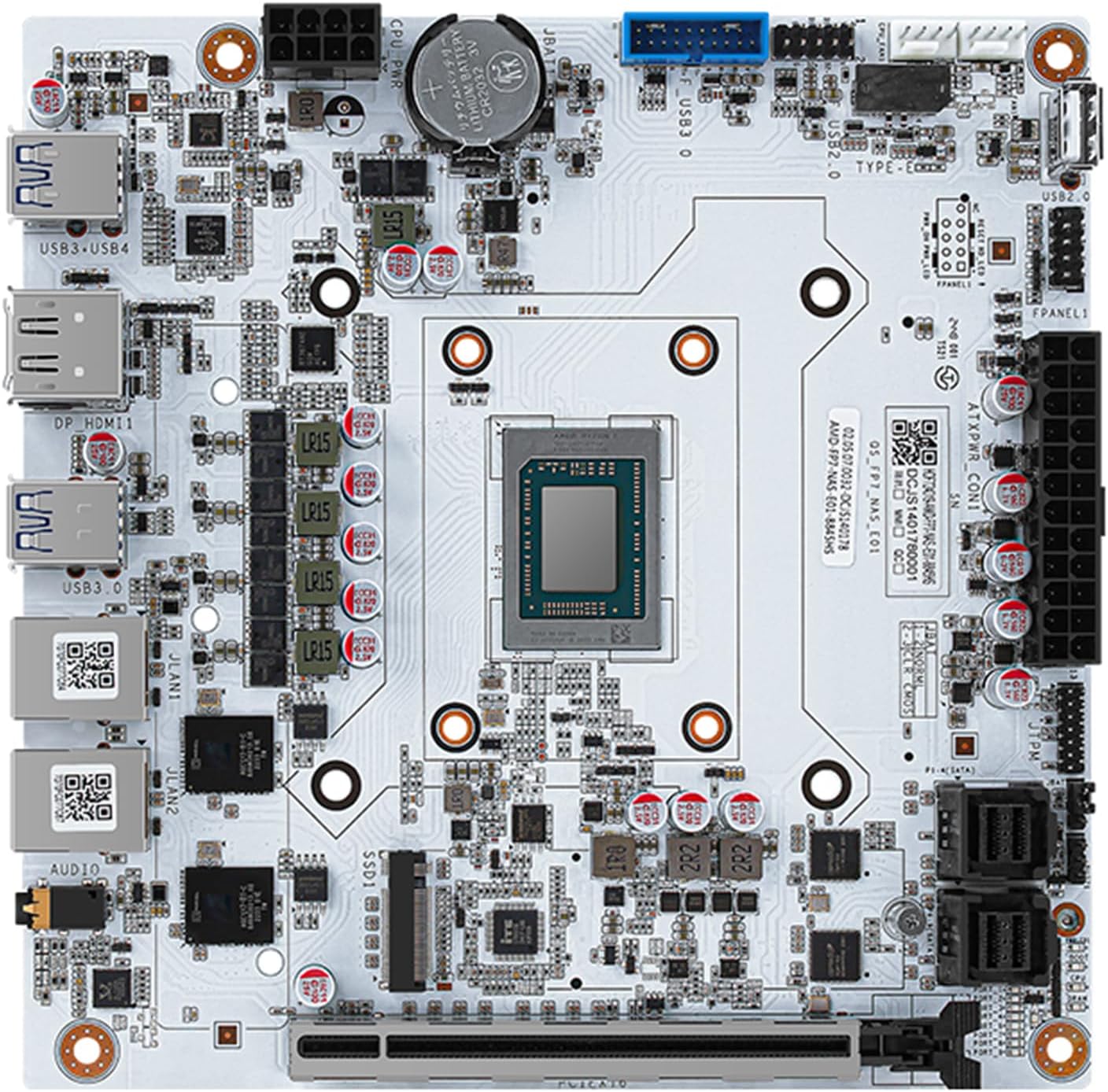

N7 8-Bay NAS Motherboard, AMD 8845HS, 2 * 10G LAN, 8*SATA3.0,2*DDR5,mini ITX,USB4 40G, 2*M.2 SSD PCIe4.0 x4,PCI-E x16 Slot,HDMI DP 4K/8K Display (AMD 8845HS with Fan & SFF-8643 Cables)

Price: $509.90
(as of Sep 21, 2025 05:53:51 UTC – Details)

Product description

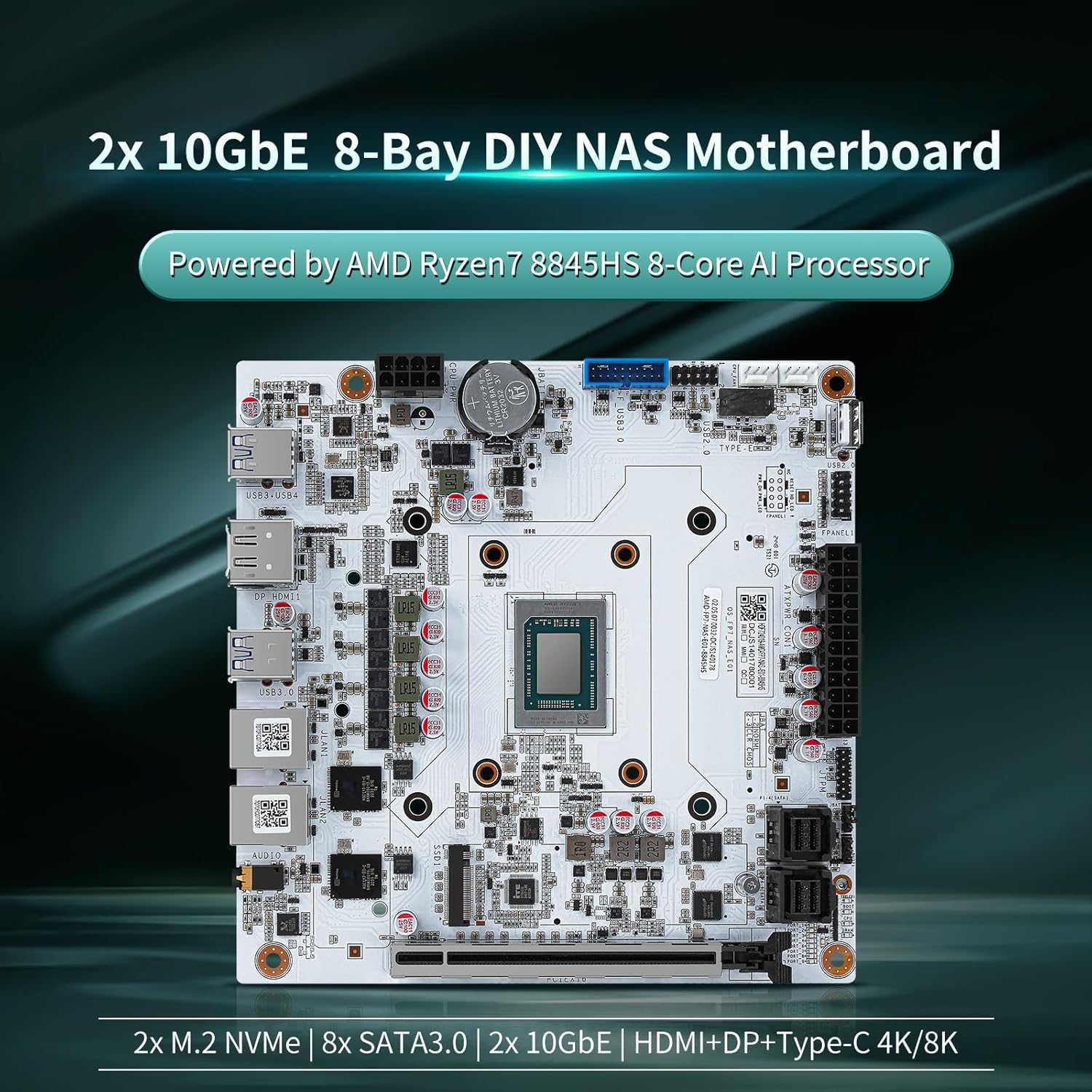

N7 8-Bay NAS Motherboard Dual 10G LAN

Product Parameters

Processor AMD Ryzen 7 8845HS (Zen4 architecture, 8 cores, 16 threads) TDP 45W,Configurable Thermal Design Power35-54W(cTDP) GPU&NPU AMD Radeon 780M graphics (12 cores, 2700MHz) ; NPU TOPS up to 16 TOPS Networking 2 × 10G RJ45 ports (Marvell AQC-113C-B1, auto-negotiating 1000M/2.5G/5G/10G) Memory Dual-channel SO-DIMM DDR5 (default 5600MHz, backward compatible),single up to 48G Storage 2 × M.2 NVMe slots (PCIe 4.0 x4, 2280 size) 2 × SFF-8643 (1-to-4 cables, expandable to 8 SATA3.0 ports) Display Outputs HDMI + DP + Type-C (supports triple display, 4K/8K) USB 1 × USB4 Type-C (40Gbps) 3 × USB 3.2 Gen1 (5Gbps) Audio 3.5mm 2-in-1 jack (Realtek ALC897) PCI-E Slot PCI-E x16 slot (supports PCIe 4.0 x8, can be split into 2 × x4 signals) Power Supply ATX 24Pin+8Pin Radiator Fan LGA1700 System Linux/Windows Working environment Temperature：0℃-60℃ humidity：10%-85%

High-performance AI processor: AMD 8845HS Processor (Zen4 architecture, 8 cores 16 threads, base frequency 3.8GHz, Turbo Boost up to 5.1GHz) with AI Engine, NPU performance up to 16 TOPS. Compatible with a wide range of operating systems and NAS systems (Linux, Windows, Unraid, TrueNAS, OMV) to meet various usage scenarios.

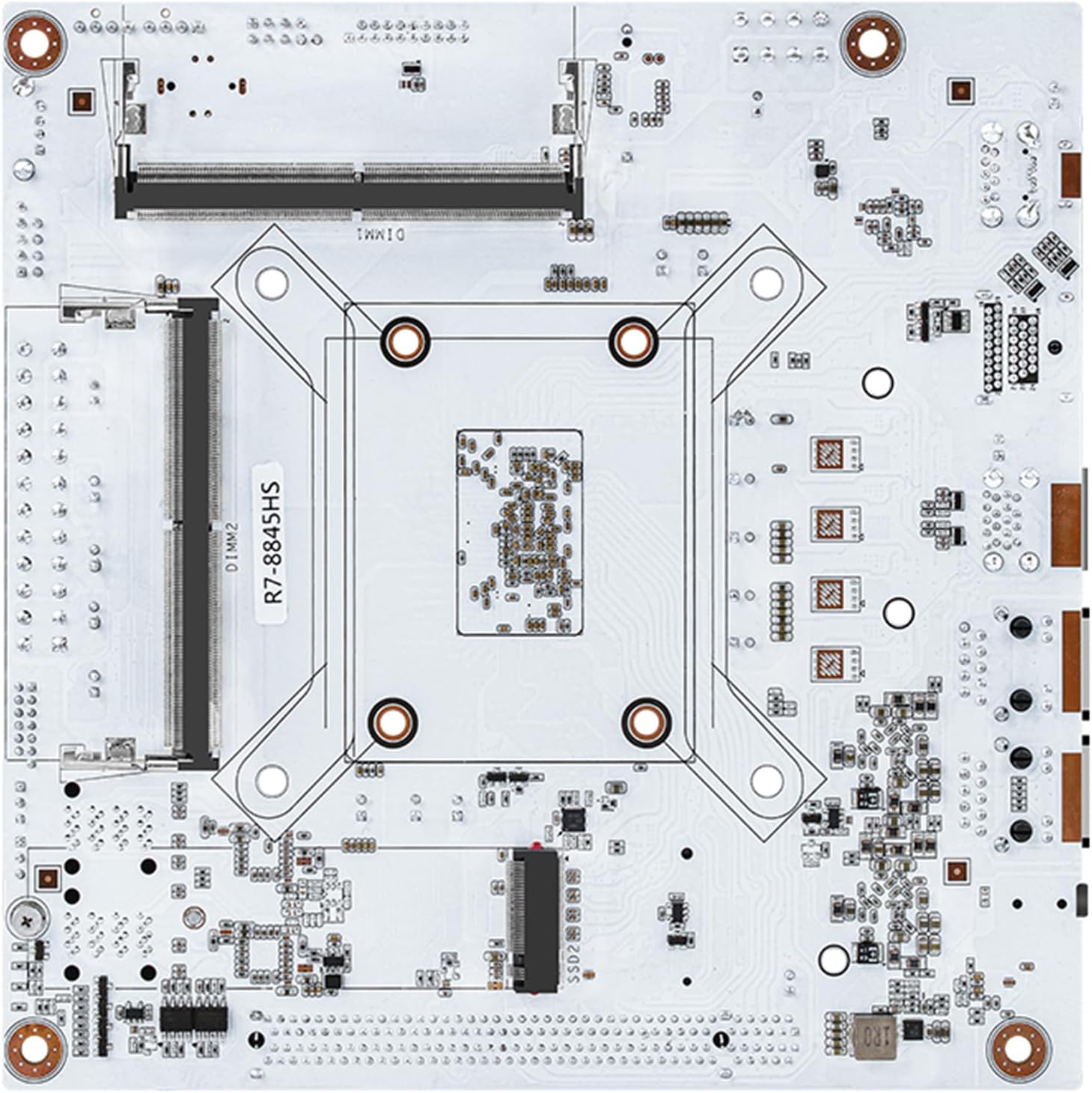

Dual 10G Ports & Dual-Channel Memory: Dual 10G RJ45 ports with Marvell AQC113C-B1 chip, supporting auto-negotiation (1G/2.5G/5G/10G) for high-speed network transmission. Dual-channel SO-DIMM DDR5 slots (5600MHz, up to 48GB per RAM, 96GB total capacity).

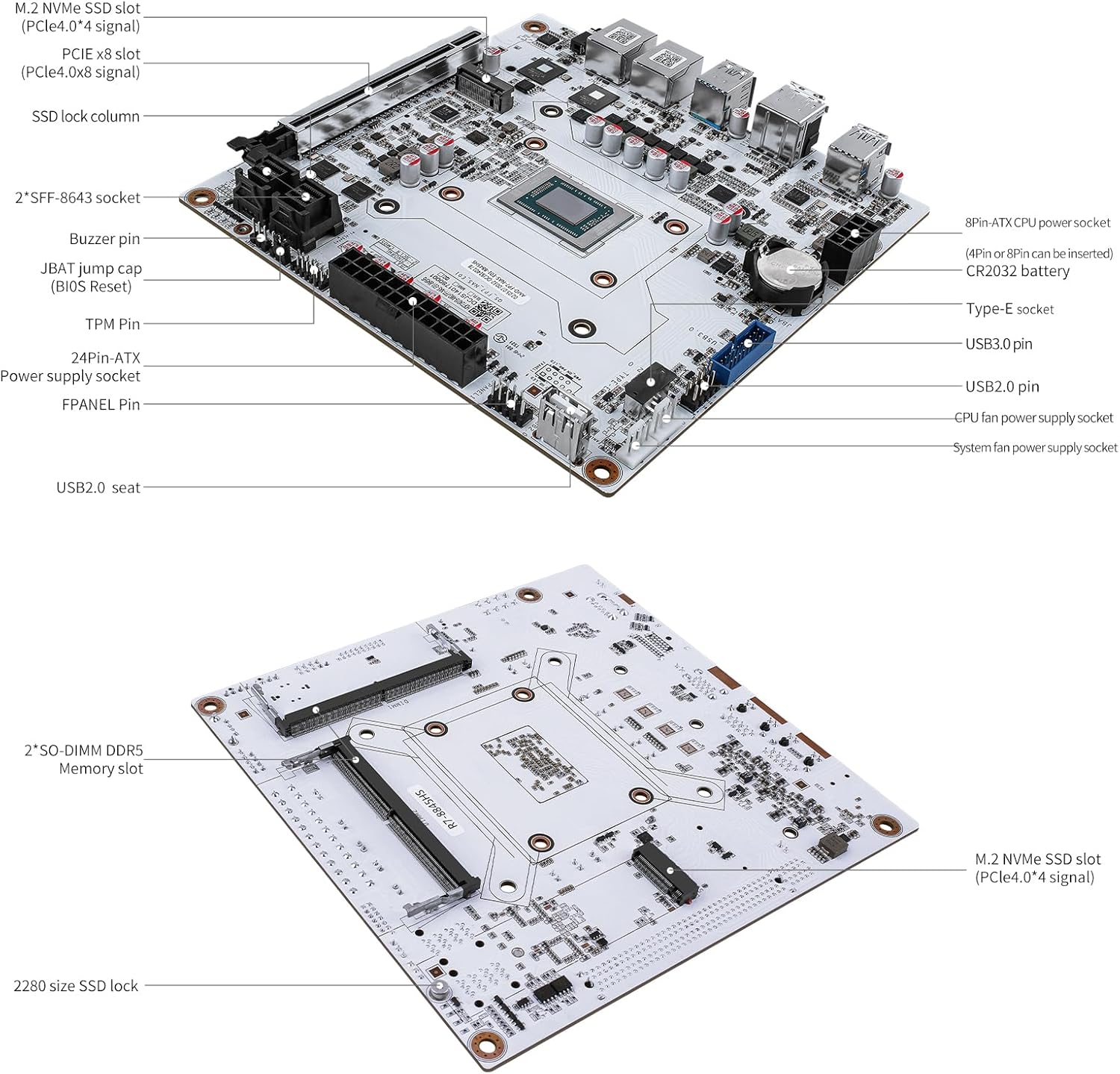

Flexible Storage Expansion: with 1 PCI-E x16 slot (PCIe 4.0 x8), support for splitting into two PCIe 4.0 x4 groups; 2 *M.2 NVMe slots (PCIe 4.0 x4, 2280 specification, front and rear placement); and 2*SFF-8643 connectors (ASM1164 chip, expandable to 8 SATA 3.0 ports). Ideal for building a DIY NAS.

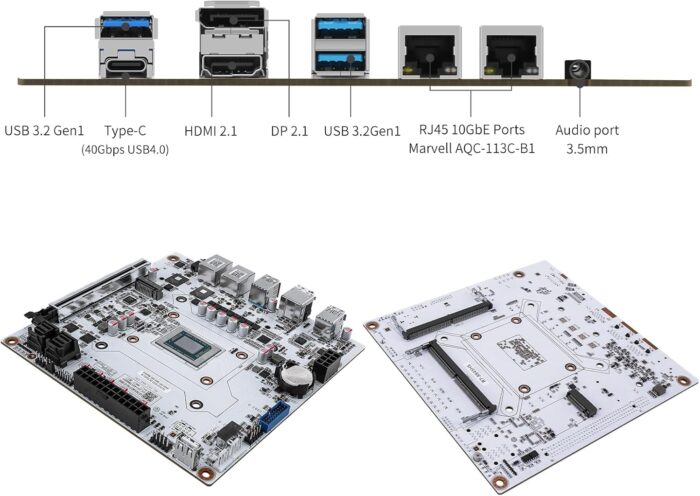

Multi-Display & Rich I/O Interfaces :Integrated AMD Radeon 780M graphics (12 cores, 2700MHz) supporting triple display via HDMI, DP, and USB4 (compatible with 4K/8K). Rich I/O interfaces include 1 Type-C (USB4 40Gbps), 3 USB 3.0 Type-A ports, 1x 3.5mm combo audio jack, and 1 vertical USB 2.0 port (for encryption/boot devices), meeting various peripheral needs.

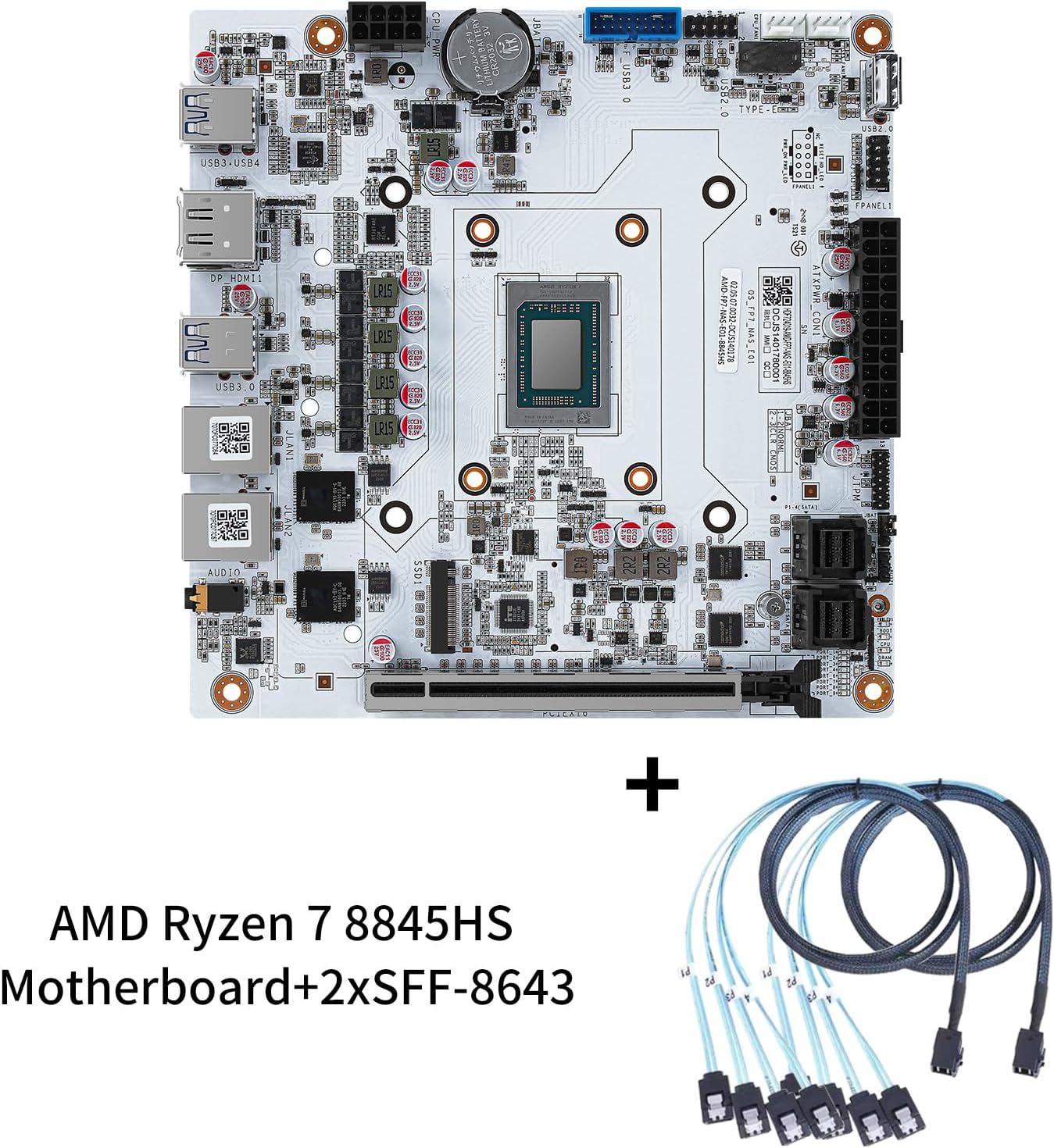

High-Efficiency CPU Cooling & Package Contents: Equipped with a CPU copper heatsink block, compatible with LGA1700 coolers. Optional fanless version (self-provided) or fan version (JONSBO HP-400S). Package includes N7 8845HS 8-bay NAS ITX motherboard, 2x SFF-8643 cables, I/O bracket, and warranty card.
